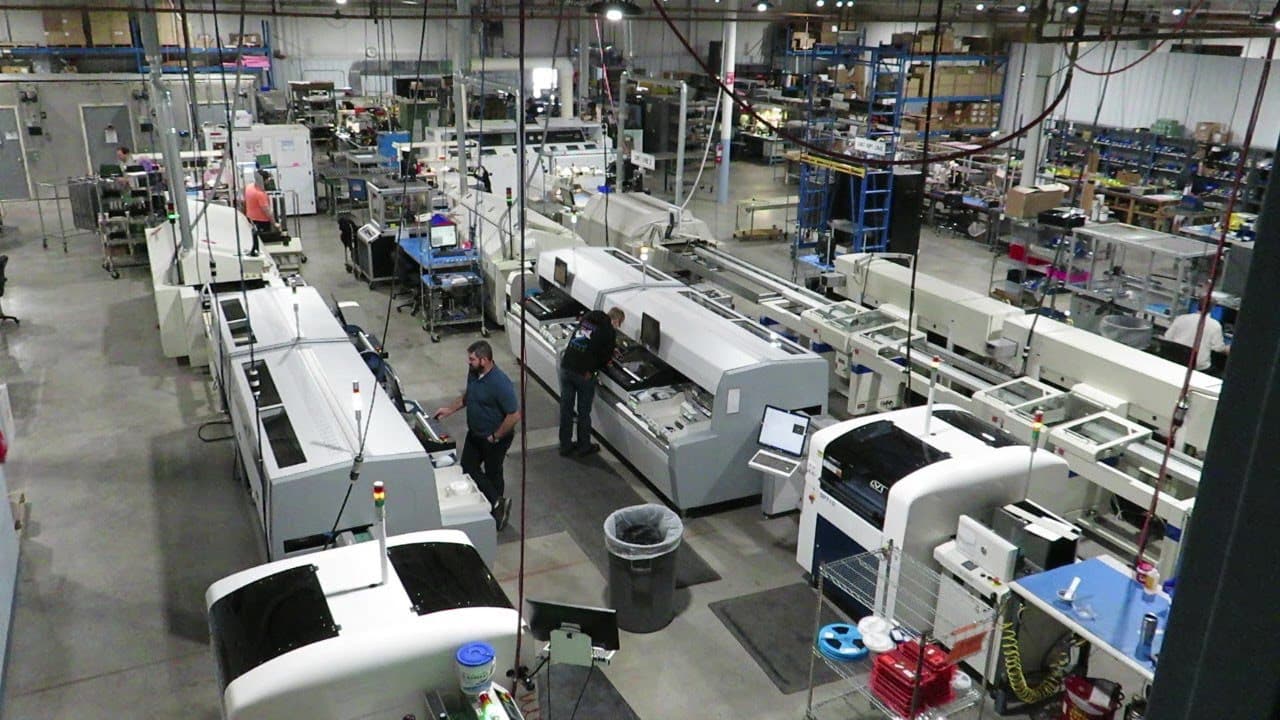

PCB manufacturing and SMT assembly line with pick-and-place machines

PCB Fabrication & Assembly

At Orbis Electrica, we support electronic product development from concept through full manufacturing. Through our trusted manufacturing partners and strict engineering oversight, we provide reliable PCB fabrication and PCB assembly services for prototypes, low-volume builds, and production systems.

The tables below summarise the manufacturing capabilities and technical limits available for printed circuit board fabrication and assembly.


PCB Fabrication Capabilities

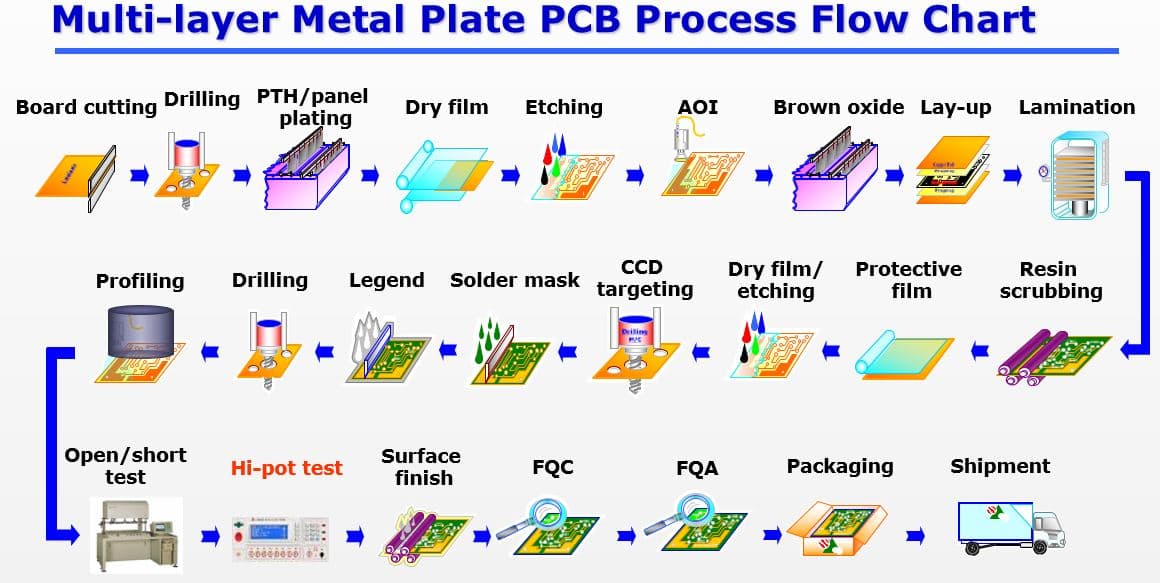

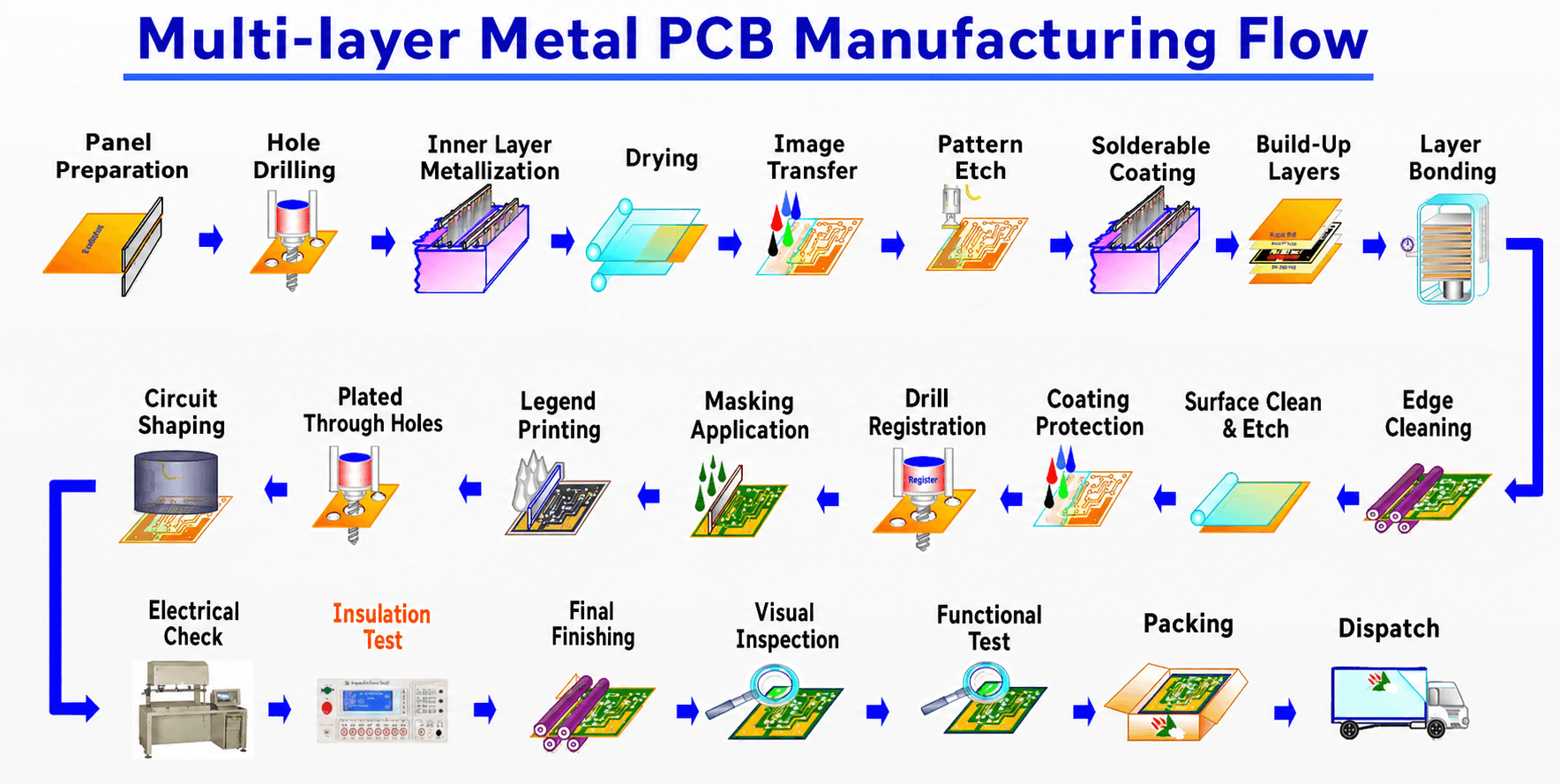

Diagram of multilayer PCB manufacturing process
FeatureCapability
Board MaterialsFR-4 (Standard, Mid-Tg, Hi-Tg), Halogen-Free, Metal Core, Polyester
Layer Count1 – 36 layers
Board Thickness0.08 mm – 6.0 mm
Thickness Tolerance±10%
Maximum Board Size600 mm × 1200 mm
Minimum Trace Width / Spacing3 mil / 3 mil
Impedance Control Tolerance±5% to ±10%
Maximum Copper Thickness6 oz (0.21 mm)
Minimum Mechanical Hole Size0.15 mm (6 mil)
Minimum Laser Drill Hole0.10 mm (4 mil)
Drill Hole Size Range0.15 mm – 6.5 mm
Minimum Solder Mask Bridge3 mil
Solder Mask ColoursGreen, Yellow, Red, Black, White, Blue
Silkscreen ColoursWhite, Blue, Black, Red, Yellow
Electrical Testing10 V – 250 V
Testing MethodsFlying probe or fixture test

Surface Finish Options

Surface Finish
Lead-Free HASL
Immersion Gold (ENIG)
Golden Finger
Immersion Tin
Immersion Silver
OSP
Carbon Oil
Hard Gold (up to 100µ”)

Flexible & Rigid-Flex PCB Capabilities

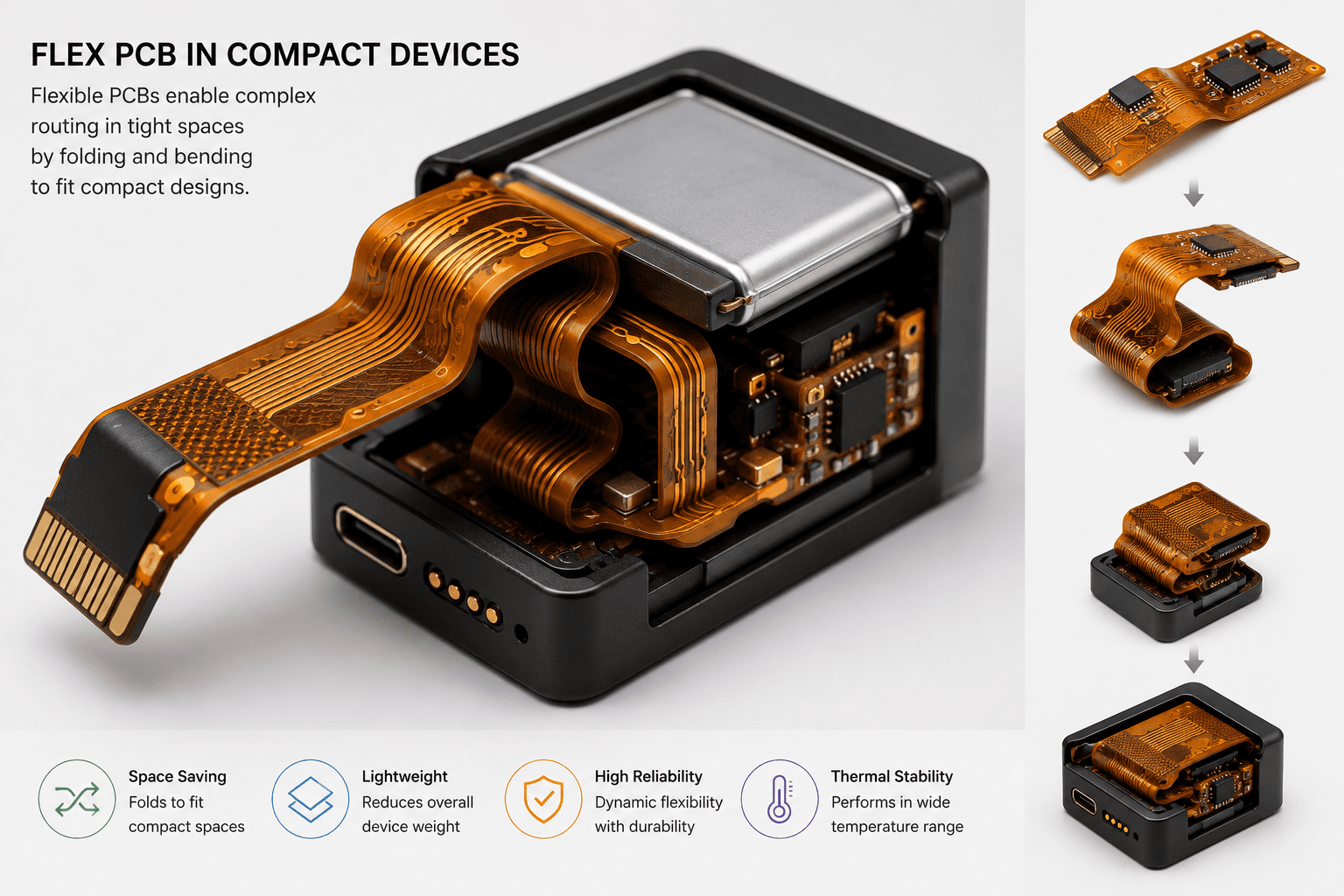

Close-up of rigid-flex PCB showing flexible and rigid sections
FeatureCapability
Layer Count1 – 12 layers
Base MaterialsKapton, PI, PET (Flex), FR-4 (Rigid)
Base Material Thickness12.5 µm – 50 µm (Flex), 0.1 mm – 3.2 mm (Rigid)
Copper Thickness0.5 oz – 2 oz
Protective Film Thickness12 µm – 25 µm
Adhesive Thickness12 µm – 35 µm
Reinforcement MaterialsPI, PET, FR-4, Stainless Steel
Maximum Board Size9.842″ × 19.685″
Minimum Trace Width / Spacing0.002″
Minimum Hole Size0.006″

PCB Assembly Capabilities

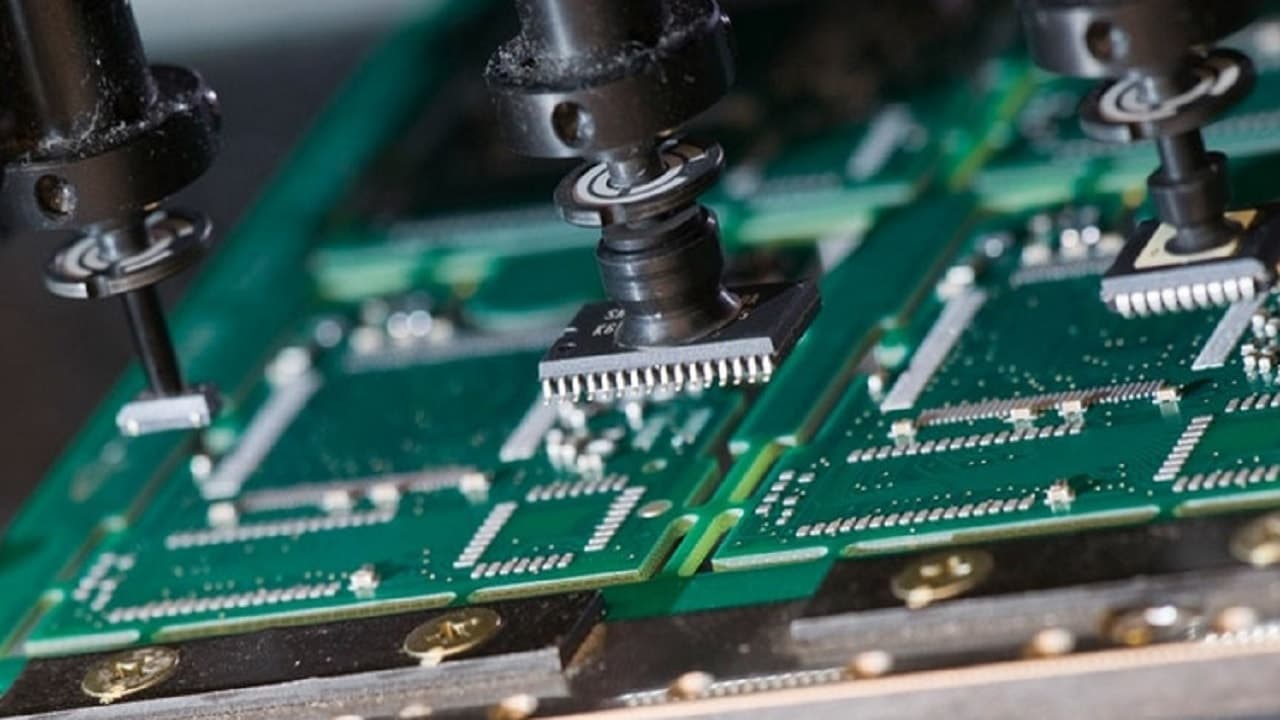

SMT component placement process on PCB
FeatureCapability
Assembly TypesSMT, Through-Hole (THT), Hybrid
PCB Types SupportedRigid PCB, Flexible PCB, Rigid-Flex PCB, Metal-Core PCB
Maximum PCB Size510 mm × 460 mm
Component TypesSMT 0201 or larger, BGA (0.3 mm pitch), QFP (0.3 mm pitch), cables & wires
Solder TypeLead-Free (RoHS compliant)
Parts Procurement OptionsFull Turnkey, Partial Turnkey, Kitted
Component PackagingBulk, Cut Tape, Partial Reel, Full Reel, Tube, Tray
Stencil TypeLaser-cut stainless steel
Production QuantityPrototype to high-volume production
Lead Time Options24 hours, 3–5 days, 1–2 weeks, or scheduled deliveries

Assembly Inspection & Testing

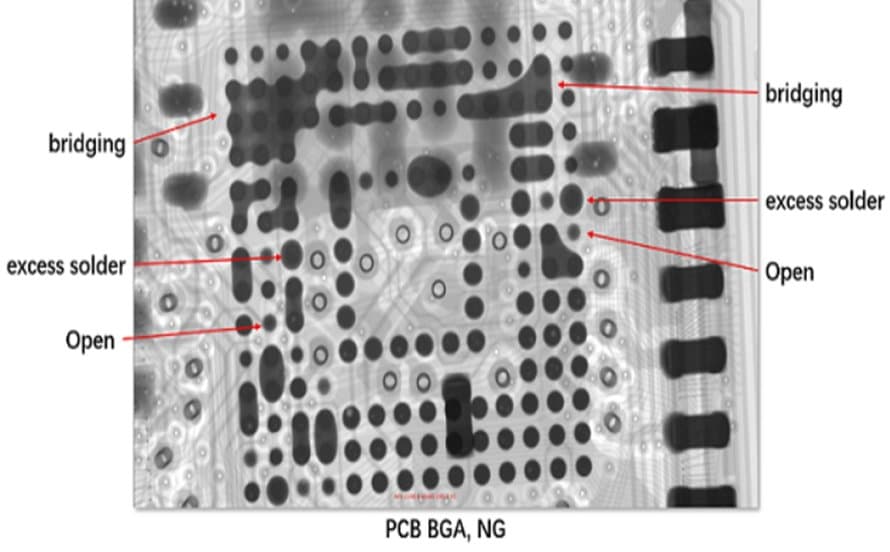

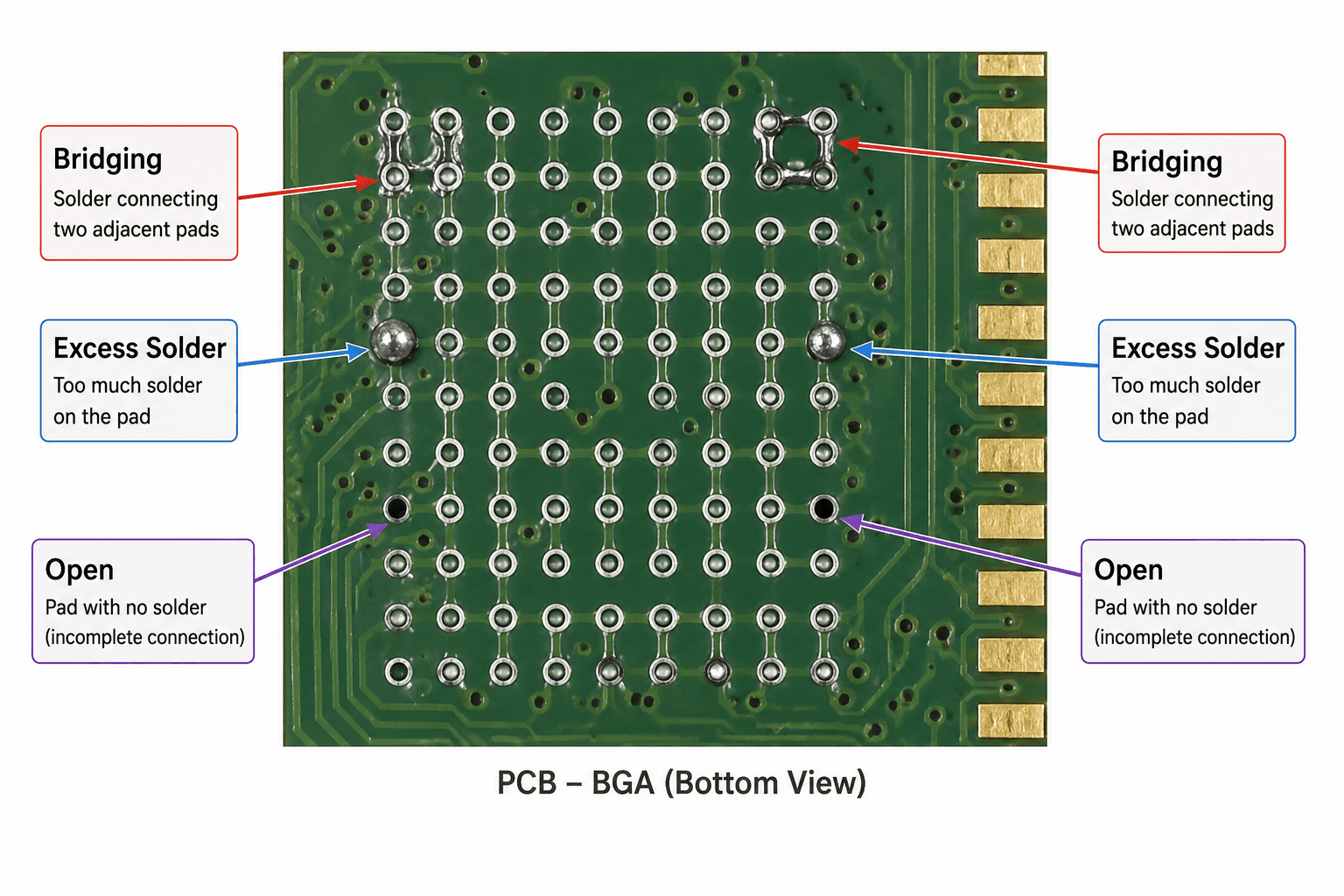

X-ray inspection of PCB showing BGA solder defects
  • X-Ray inspection
  • In-Circuit Testing (ICT)
  • Functional Testing (FCT)
  • IC Programming
  • Custom Testing
  • Design for Manufacturability (DFM) checking

These capabilities allow Orbis Electrica to support projects ranging from rapid prototyping to full production manufacturing with robust inspection and quality control processes.
